About this item

• Multi-Functions LED IR Controller: There are 16 colors and 4 light patterns: Flash/Strobe/Fade-change/RGB Smooth-change. Easy for you to turn ON/OFF strip lights, DIY colors as you like and adjust brightness.
• Compatible with RGB Strip: Work with SMD 5050 3528 2835 RGB led light strips with 4-Pin connectors. (Not for RGBW strips which have 5-pin connectors.)
• Safe to Use--Low voltage: Output current: (3x2A)6A, Input voltage: DC 5-24V. Input DC 12V, Max output current is 12A. The remote controller has been low voltage, low heat, no radiation, it is safe and touchable.

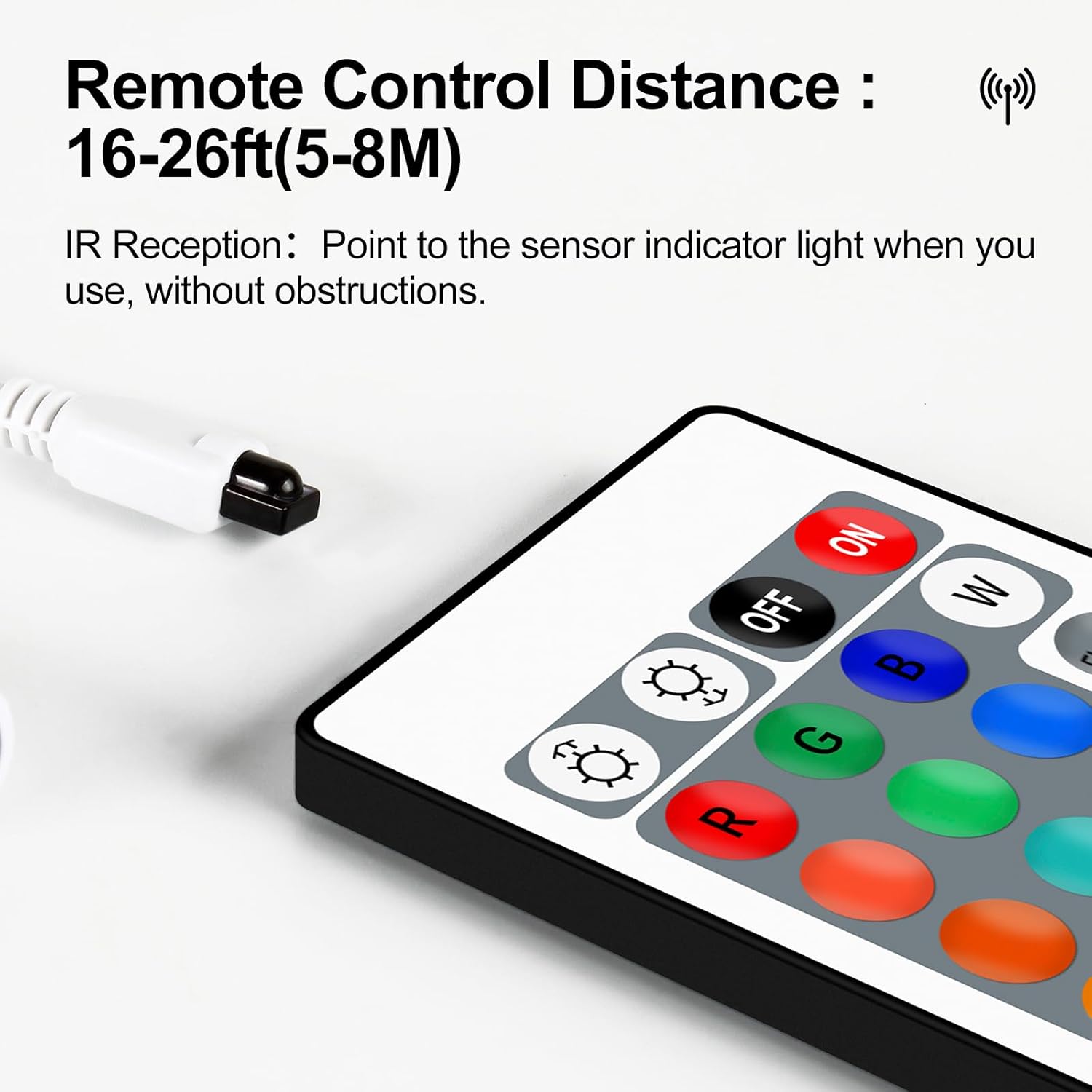

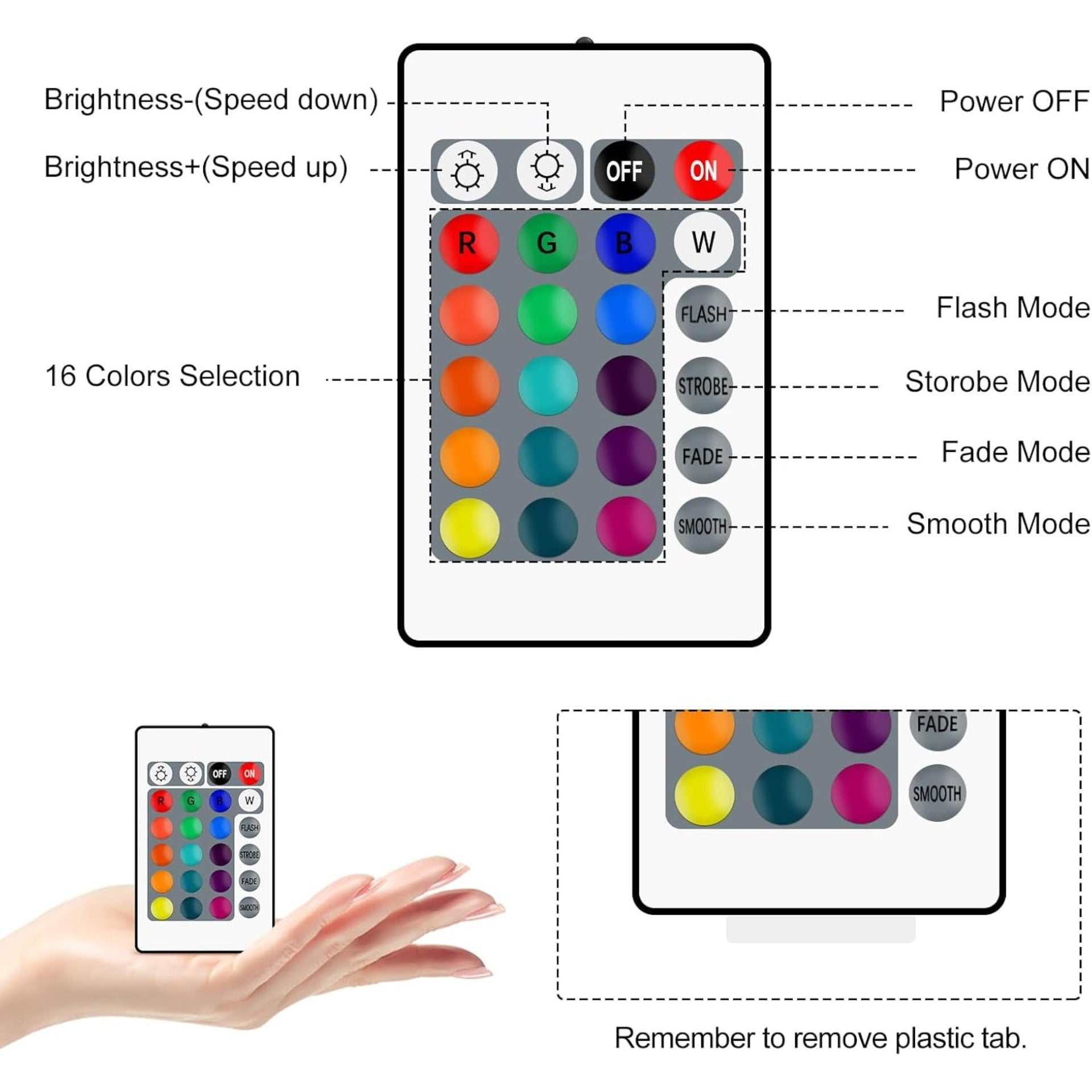

• IR Remote Controller: IR remotes have a performance range of about 30 feet, point to the sensor indicator light when you use Please note: IR remotes must be pointed directly at the devices you are trying to control.
• Easy to Use: If you want a straight forward, simple to use, cost-effective remote, our this 24 keys IR remote controller dimmer is the way to go. Package included: 1 x IR Controller 1 x 24 Key IR Remote Controller. (CR2025 is included in the remote control. Pull out the plastic piece before use.) Tips: Input voltage = Output voltage.

  ---

  Product description



  Multi-Functions: 20 static colors, 6 DIY modes, adjust brightness, turn On/Off, control modes: Flash, Strobe, Fade, RGB Smooth-change, Static, DIY frequently-used modes as you like.

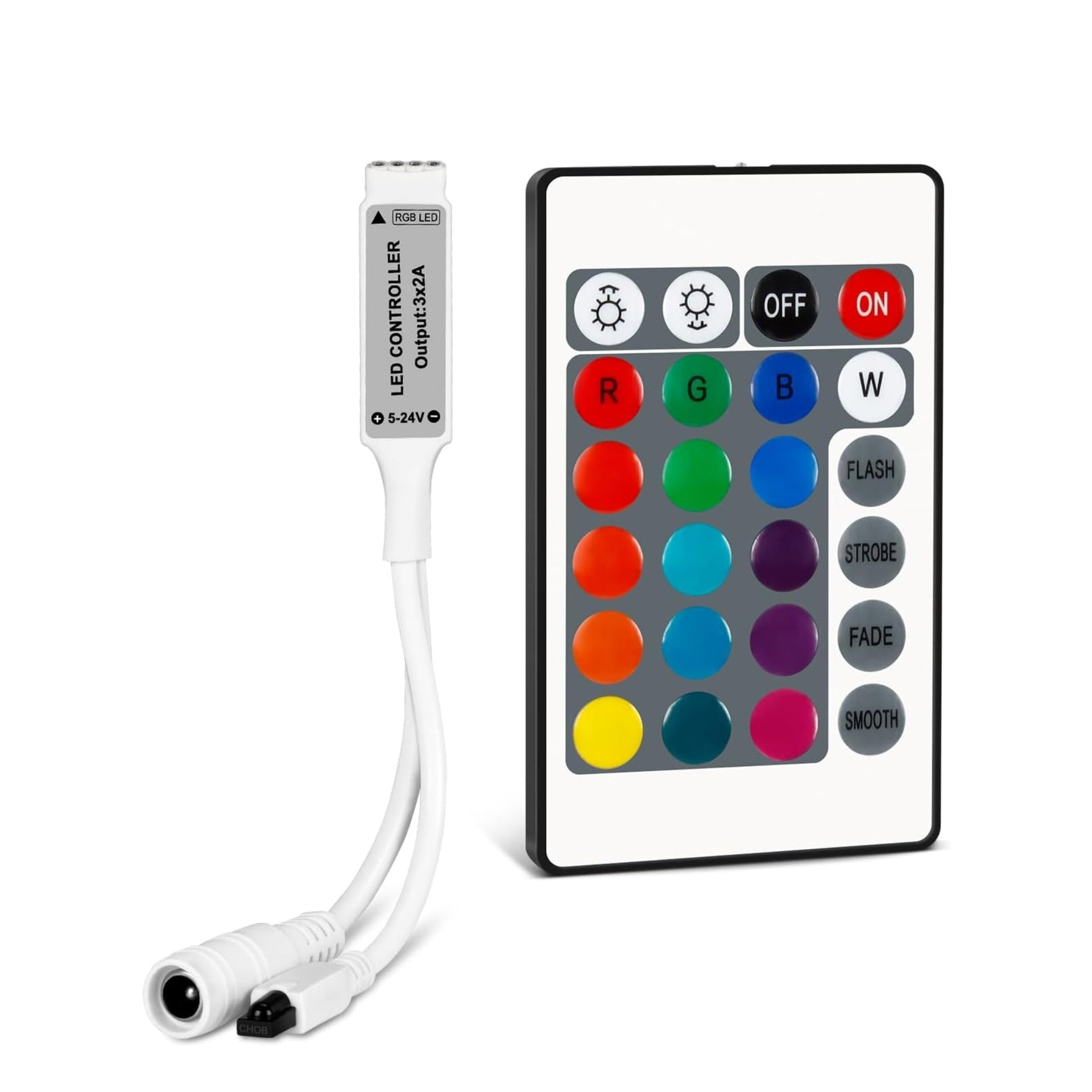

  Specification about 24Key IR Remote LED Controller

  Type:	24Key IR Remote LED Controller
  Connection mode:	Common Anode(+)
  Input Voltage:	5-24V
  Output Current:	(3x2A)6A
  Max load current:	2A Each color
  Power:	5V30W 12V72W 24V144W

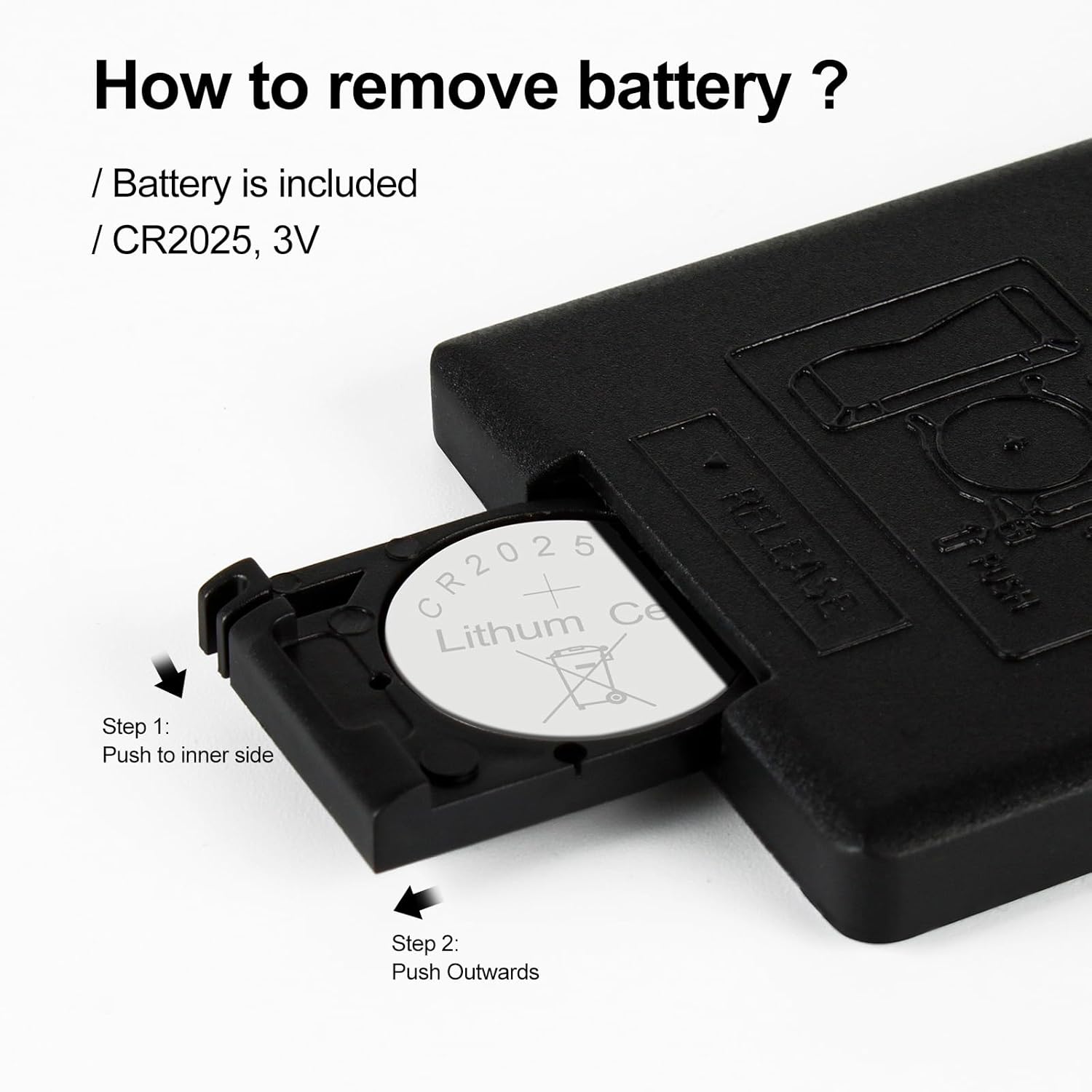

  Battery Mode:	CR2025( Included in the remote)
  Package included:	1 x IR Controller 1 x 24 Keys IR Remote Controller

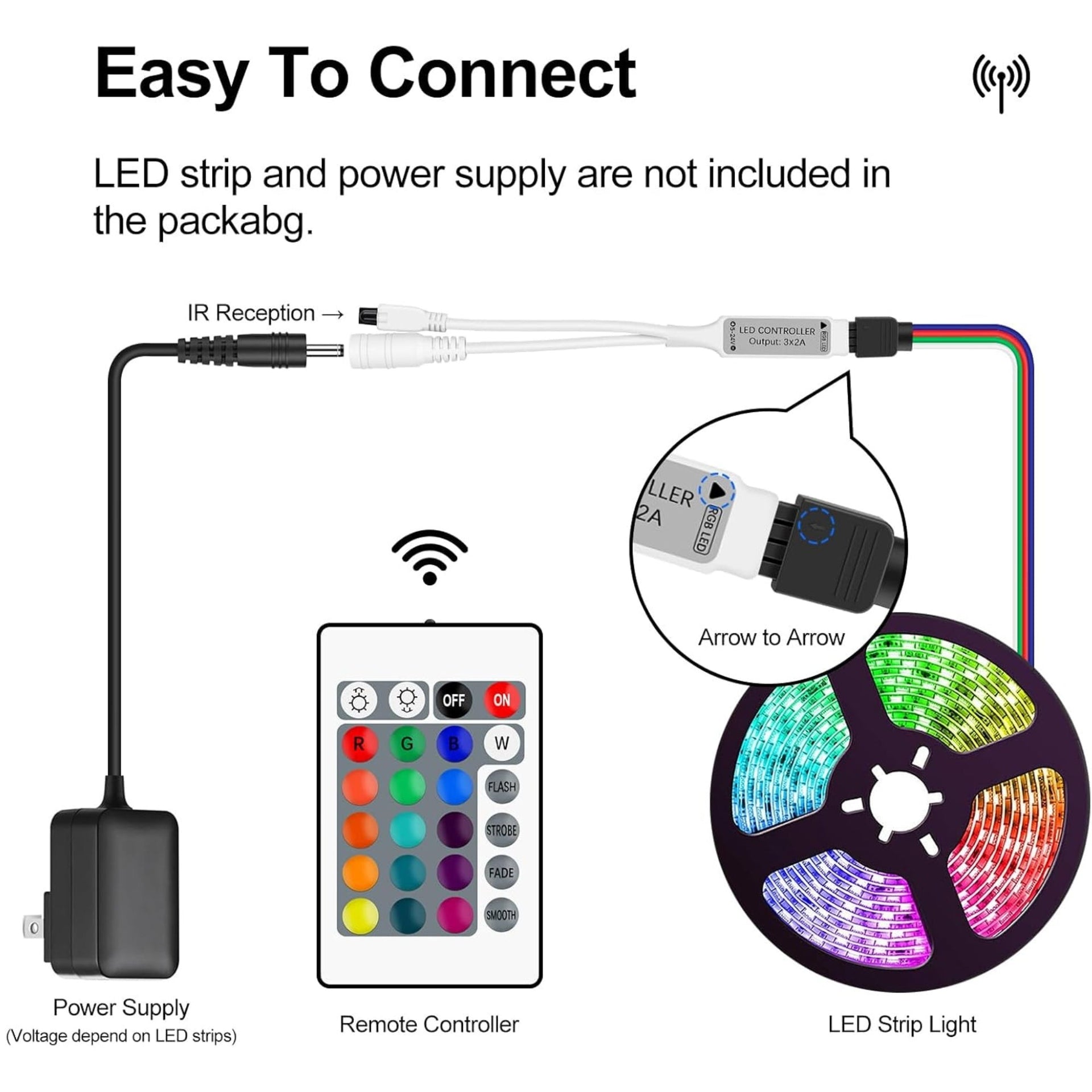

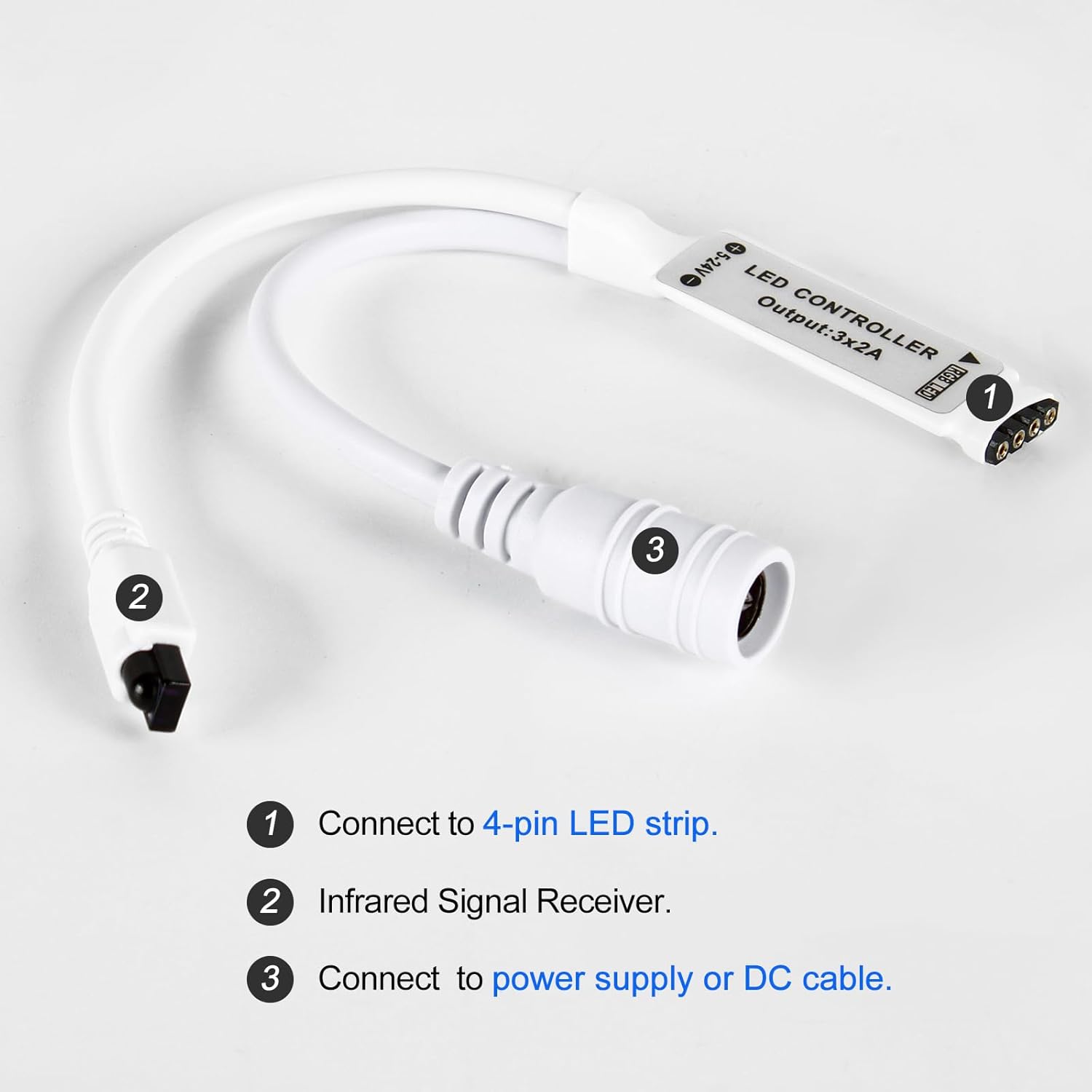

  Description of the interface：



  1. Connect to DC Power Supply: 5-24V, Input voltage = Output voltage.
  2. Infrared Signal Receiver: Point to the sensor indicator light when you use, there should be no obstacles between the light strip and the controller.
  3. Connect with LED Strip: Compatible with all 5050 2835 3528 RGB light strip, no matter what brand it's.









  • Power supply according to your led lights. For example, DC5V 5050 LED Strips must use a DC5V power supply. ***Input voltage=output voltage.
  • The power is 5V<30W, 12V<72W, 24V<144W, if it exceeds this power, please equip the light strip with a separate power supply or use it with an amplifier.



  Setting of wiring and sorting

  Wrong wiring sorting can result in opposite colors, e, g, red becomes green.

  Methodological steps:



  • Turn off the switch, press the "FADE" key, the light strip blinks.
  • Press the RGB three keys again to adjust to the color you want.



  If the change is successful, the light bar will blink once.
